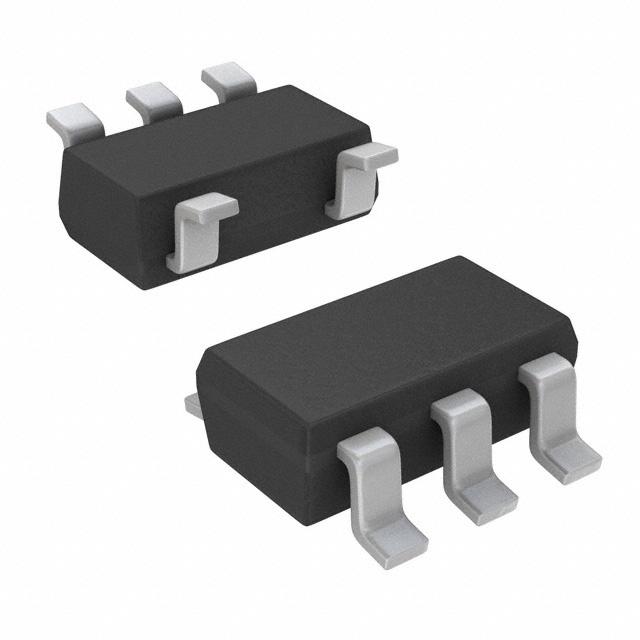

Gates, инверторы SN74AHC1G02DCKR
Информация о продукте
| Название | Описание | Производитель | Количество | Срок поставки | Кратность заказа | Цена (RUB) | Заказать |
|---|---|---|---|---|---|---|---|
| SN74AHC1G02DCKR | SN74AHC1G02DCKR, SC70-5, ЛЕ1 | TI | 92 шт | 14 дней | 1 |
25.2020 от 17 шт. 22.5018 от 338 шт. |
| Current - output high, low | 8mA, 8mA |
| Current - quiescent (max) | 1µA |
| Features | - |
| Logic level - high | 1.5 V ~ 3.85 V |
| Logic level - low | 0.5 V ~ 1.65 V |
| Logic type | NOR Gate |
| Max propagation delay @ v, max cl | 7.5ns @ 5V, 50pF |
| Mounting type | Surface Mount |
| Number of inputs | 2 |
| Operating temperature | -40°C ~ 85°C |
| Package / case | 5-TSSOP, SC-70-5, SOT-353 |
| Packaging | Cut Tape (CT) |
| Part status | Active |
| Supplier device package | SC-70-5 |
| Voltage - supply | 2 V ~ 5.5 V |
| Производитель | Texas Instruments |
Описание
IC GATE NOR 1CH 2-INP SC70-5
